EOT Crane Manufacturers And Exporters in India

Double Girder Overhead Goliath Crane

Span : 5mtr. to 50mtr.
Capacity : 1ton to 10ton
Duty Class : Class-I to Class-IV (M1-M8)
Operation : Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

Details of Double Girder Overhead Goliath Crane

We are pleased to announce that now we are one of the leading Double Girder Overhead Goliath Crane manufacturers in India. We produce cranes that can be handled uniquely and in a prompt way. The overhead cranes that are manufactured by us are much more durable and stable than the other ones. They are also designed keeping in mind the present style and patterns. This is not present in any other ones.

On the other part, the mode of operating the cranes is made smoother so that it can be handled by anyone who does not have prior experience or training in any way. The tools that are used in the double girder cranes are much better and advanced.

Other Details of the Double Girder Overhead Goliath Crane

1t. to 100t. Cap., up to 50-meter span and required Height of lift (for Higher Capacity and span please consult us)
1t. Cap. Double Girder Goliath Crane
2t. Cap. Double Girder Goliath Crane
3t. Cap. Double Girder Goliath Crane
5t. Cap. Double Girder Goliath Crane
7.5t. Cap. Double Girder Goliath Crane
10t. Cap. Double Girder Goliath Crane
12.5t. Cap. Double Girder Goliath Crane
15t. Cap. Double Girder Goliath Crane
20t. Cap. Double Girder Goliath Crane
25t. Cap. Double Girder Goliath Crane
30t. Cap. Double Girder Goliath Crane
40t. Cap. Double Girder Goliath Crane
50t. Cap. Double Girder Goliath Crane
60t. Cap. Double Girder Goliath Crane
75t. Cap. Double Girder Goliath Crane
80t. Cap. Double Girder Goliath Crane
100t. Cap. Double Girder Goliath Crane

Descriptions	Specifications
Capacity	1t.,2t.,3t.,5t.,7.5t.,10t.,12.5t,15t.,20t.,25t.,30t.,40t.,50t.,60t.,75t.,80t.,100t.
Area	Non-Hazardous/Hazardous as per customer requirement
Test Load	125% of SWL
Height of Lift	3 meters to 50 meters or as per customer requirements
IS Code	IS807, IS3177
Type	Double Girder
Locations	Indoor/Out door
End Carriages	The End Carriages are welded construction type and fabricated from plates or Std. section type constructions.
Bridge Girders	The girders are of plate fabricated box type construction design to sustain all stresses arising due to vertical & lateral forces with impact to which they are subjected. The maximum deflection of the main girder is limited to 1/750 the span of live loads including the weight of the trolley or hoist.
Platform	M.S. Checkered plate/anti-skid plate’s full-length platform shall be provided on one side of the bridge girder in double girder crane
End Stopper	Steel end stoppers are provided on either side of the bring to limit the motion of the trolley. All the buffers will employ springs for shack absorption.
Steel	Steel confirming to IS-2062 or equivalent is used in the manufacturing of the main load bearing. (Mainly Essar or Sail make)
Wheel Base	As per span and IS code
L.T. Drive System	Twin drive type.
Main-Hoisting	1 meter per minute to 20 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
L.T.	1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
C.T.	1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
Ele. Motors	All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty
Brakes	Electro-Hydraulic shoe type/ Electromagnetic Disc /AC & DC Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off
Wire Rope & No. of aal	Selected as per crane capacity and IS Code he makes of wire rope will be used Usha-martin

1. Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance
2. Easy to installation
3. Reliable structure
4. Higher efficiency to save power
5. All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
6. All motions are protected with limit switches
7. Rubber buffers are provided to extra protection against collision in case of limit switch failure
8. Dustproof panel box with reputed make switch gear or as per customer’s approval
9. 110 V Control voltage selected for protection of Crane operator against any electrical shock
10 With electrical Interlocking to prevent simultaneous operation of opposite motion

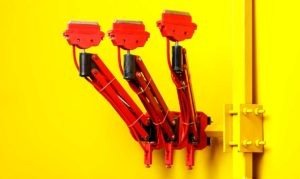

11. Using "C' Rail / I Section type C.T. & Push button Festoon system it’s give long life and trouble free operation

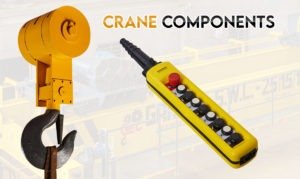

12 Unbreakable, Handy, light weight PVC Pushbutton
13 Coupling less L.T. & C.T. Motion up to 7.5 Hp, (Less mechanism less maintenance)
14 VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)

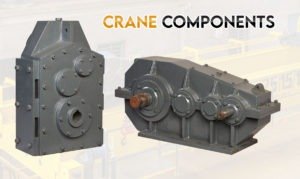

15. Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
16. Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width

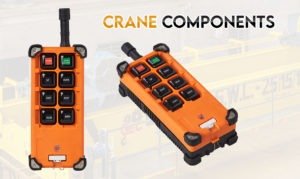

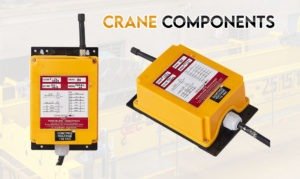

1. Radio Remote Control / Cabin Control
2. Dual speed for all motion
3. VFD in all motion
4. Siren While Traveling a crane
5. Load Cell with Display to weigh a Load or protection against overload
6. Special Dimension Hook
7. Other Reputed Brand Gearbox
8. Drag Chain in Festoon system
9. Protective Paints / Coating

1. Over Lowering or over hoisting prevention limit switch
2. Hook Safety Latch
3. Overload Relays
4. Travelling limit switch
5. Rubber buffer
6. Brakes in Hoisting as well as c.t & L.T.
7. Main Switch
8. On/ off switch in push button /Emergency stop
9. MCB /fuse
10. All 4 core cables with Earth cable
11. Maintenance platform
12. Siren in goliath crane
13. Anti-collision device when more than one crane on same bay

Electric & Small parts are packed by high quality wooden crate to reduce distortion in conveying; Main beams, end carriages and electric hoist are packed by Wrapping of plastic roll It can reduce abrasion when transport.

1. One to one service guarantees you the best purchasing experience.
2. Strong production capacity and professional workmen guarantee you the short delivery.
3. Strict delivery inspection guarantees you the high quality products.
4. The short delivery time.

1. One year warranty for Cranes
2. Providing free quick-wear part
3. Low charge for continue maintenance when warranty is expired
4. Exclusive engineer support at any time.
5. Highly professional training to end-users

Best qualities of the Double Girder Overhead Goliath Crane

We have recently become the important Double Girder Overhead Goliath Crane Suppliers who is engaged with the task of transmitting the loads from one place to another. We have designed the cranes in such a manner so that the whole things become computer optimized or operated. This reduces the work load to a great extent.

We try to produce the cranes in such a manner so that they become a cost-effective tool in the hands of industrial workers.
